Architecture for flow case study

Connectivity opens up new opportunities to develop and improve vehicles and mobility services. Intelligent networking, constant data exchange and comprehensive digital solutions will benefit transport and logistics on many levels, ensuring greater efficiency and environmental protection. The use case we are presenting here is a data platform created to support and enable connected mobility use cases. One finds here tire end of life prediction, security offers around connected pressure, tire traceability etc

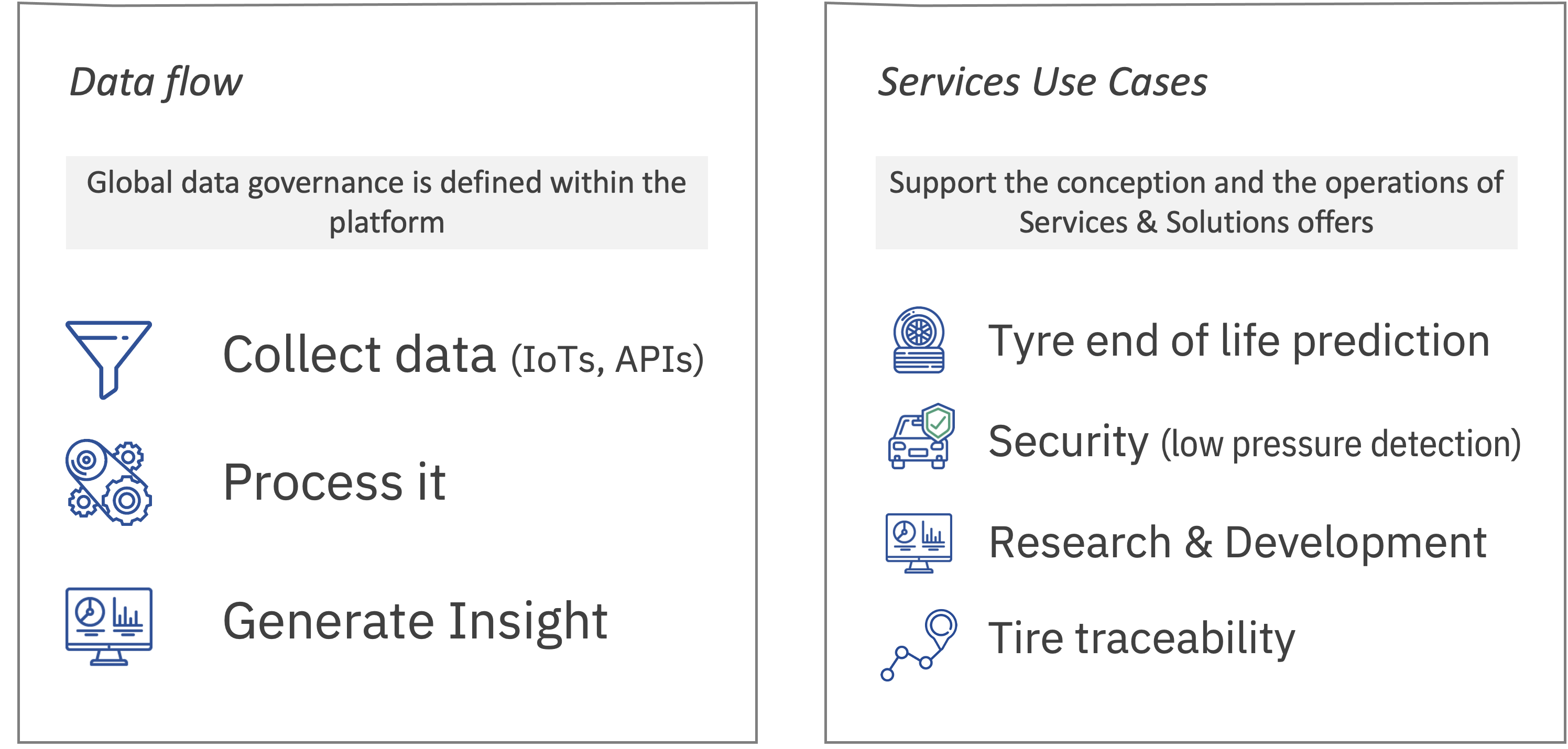

From a data flow perspective, the platform:

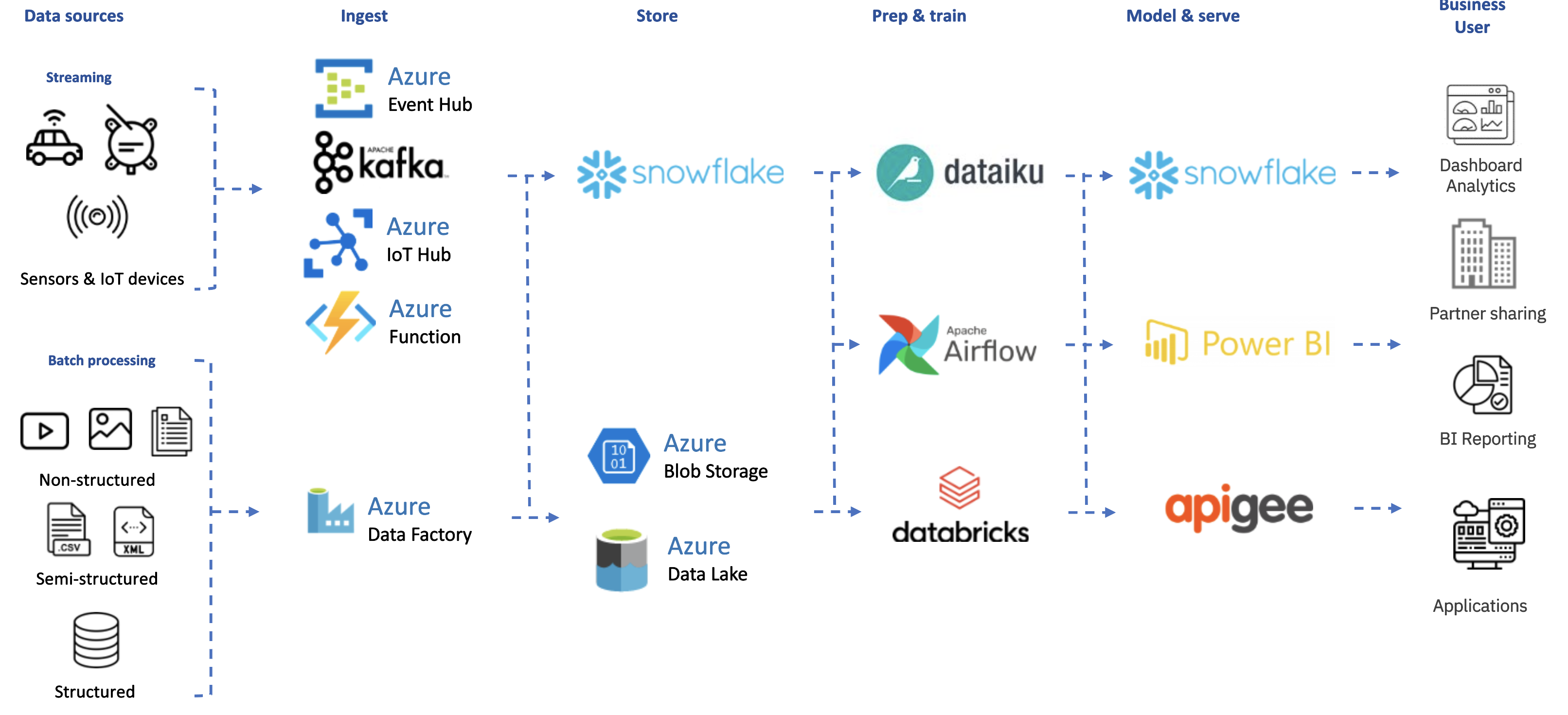

The technology stack in used is mainly based on PaaS (Platform as a Service) services supporting the above main functions as depicted in the below figure.

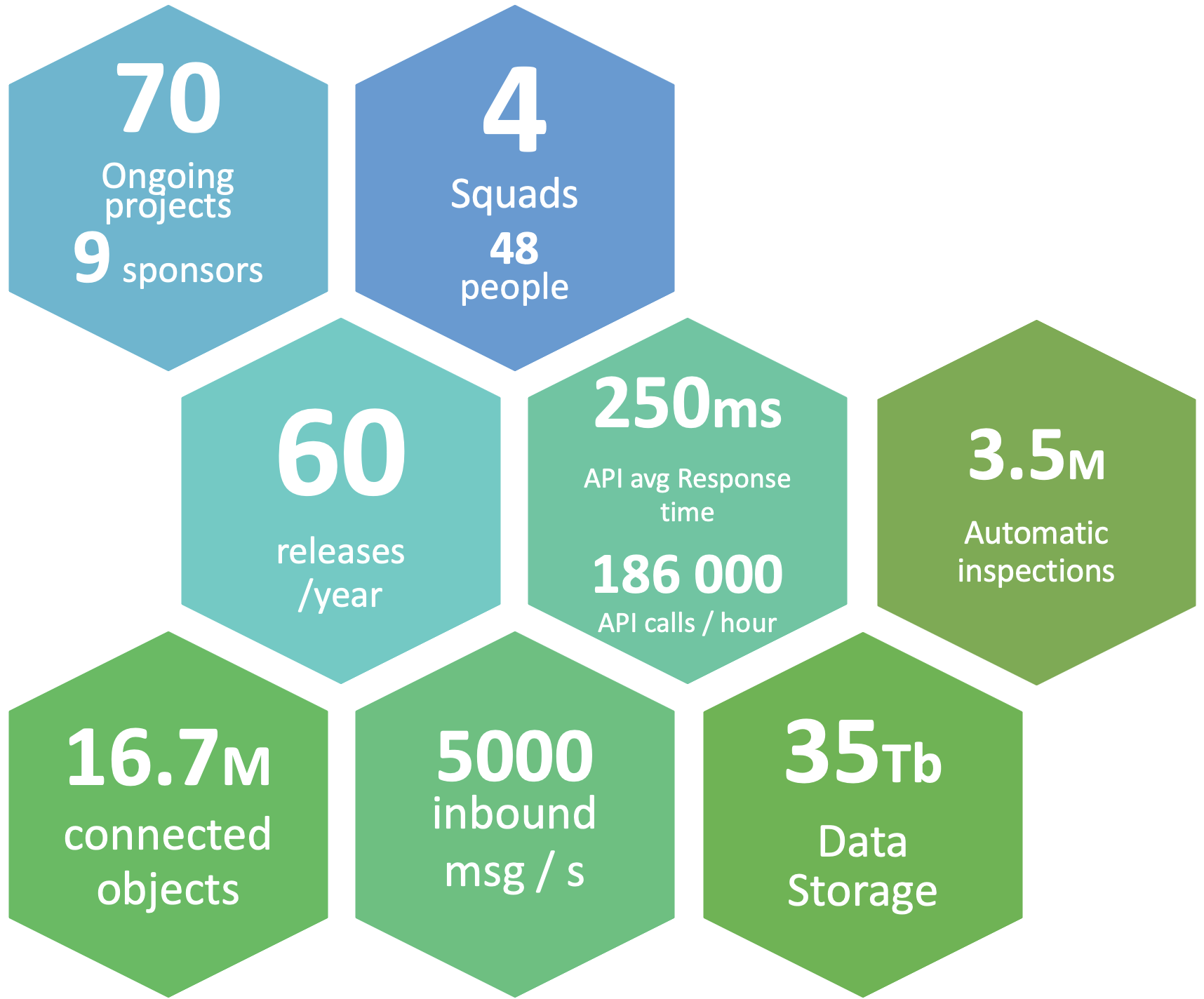

In terms of metrics, the below figures illustrates the size of this initiative:

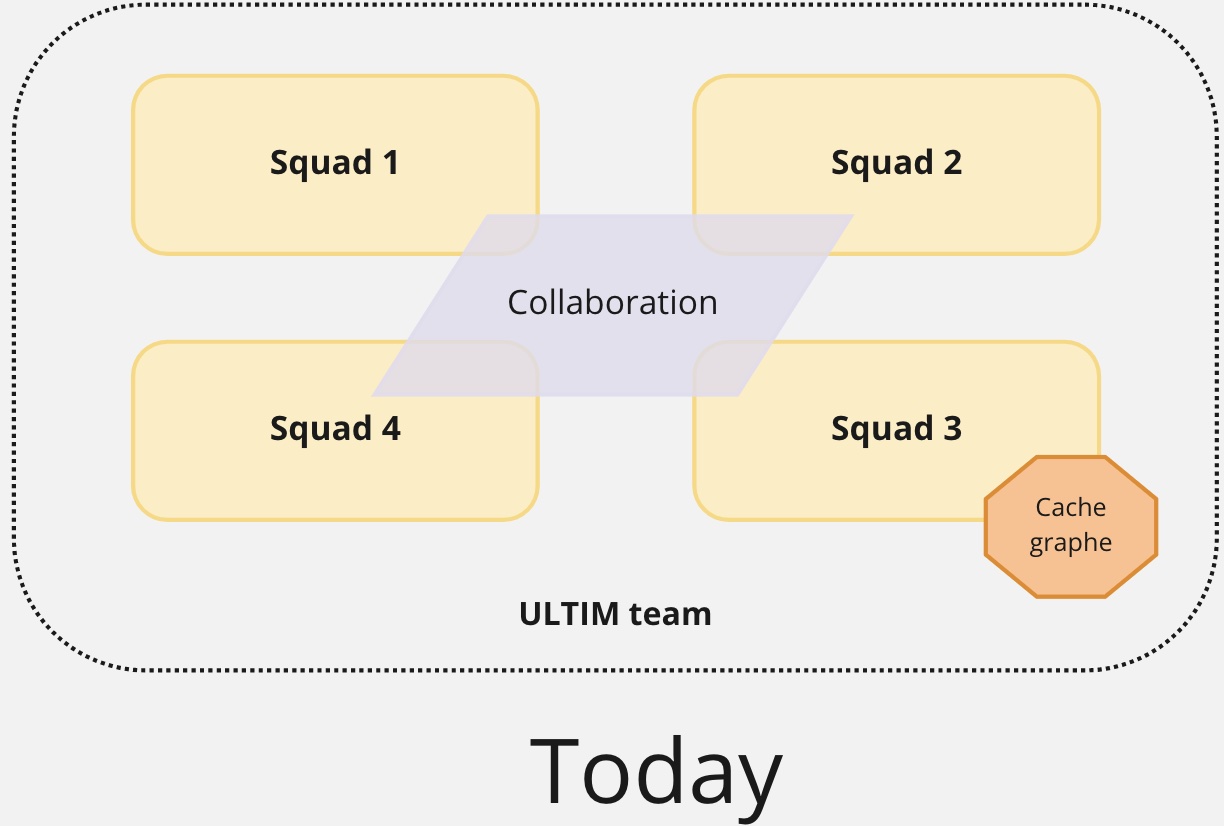

The team building and running this platform was organized using a very specific team topology: supposedly stream aligned teams collaborating on the same product (ie a git repository) and a complex system team in charge of a very specific component.

This team was from the beginning in a product approach mode with the "You Build It, You Run It" mindset. According to the famous Accelerate metrics (lead time, deployment frequency, meantime to restore & change fail), that team was considered "medium performer" with an average of 1.1 deployment a week, 4 weeks lead time, 4h MTTR and 15% change fail.

Over time we started to notice a slow degradation of that performance. It was small but regular. It materialized with a first syndrome. The number of Work In Progress items in the backlog kept increasing reaching the very high number of 51. As reference, we consider that 3-4 per team is a market norm. Inevitably, the lead time metrics deteriorated. At some point, the team was so overloaded that a second syndrome appeared. I called it "it’s not in my scope". Given the number of in progress items, the team developed a self-preserving reaction: I don’t want to increase my burden so I am pushing this problem to someone else (even if the topic was indeed in their scope).

This team moved from medium to low performer in about a year. In parallel, the work that should have been done by this team was now handled by others.

We’ve been through different diagnosis sessions with the team to deep dive on the different issues.

The first set of problems we outlined is related to the flow of value being blocked:

There was also architecture and technologies problems:

At some point, the team kept re-organizing itself, trying to find solutions through the organization without looking at the problem holistically. Looking at our ambitions in this domain, we had to fix these issues but also to scale this solution so we can support more and more services offers and exploration topics at the same time.

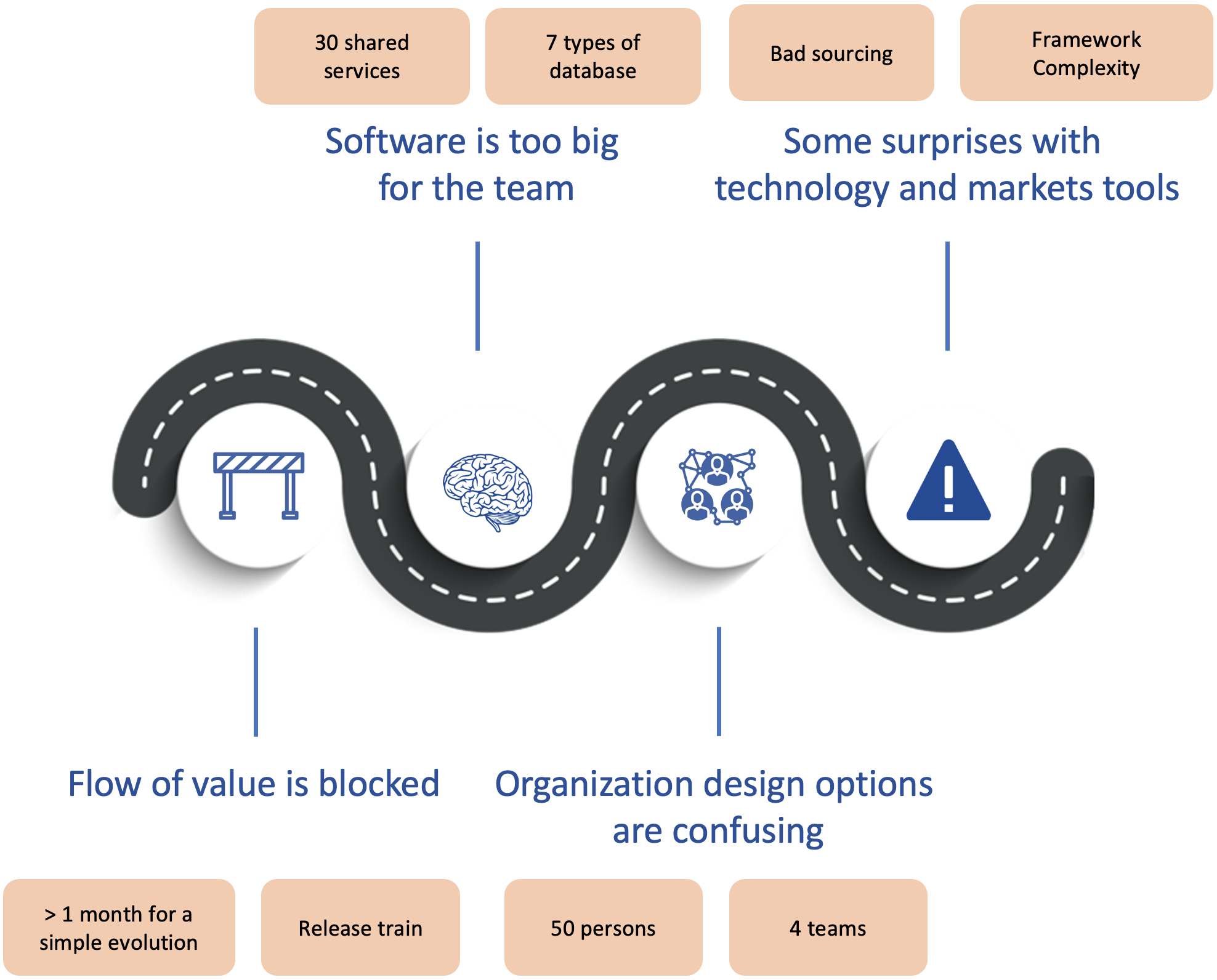

We decided to step back and see the global picture (systemic view):

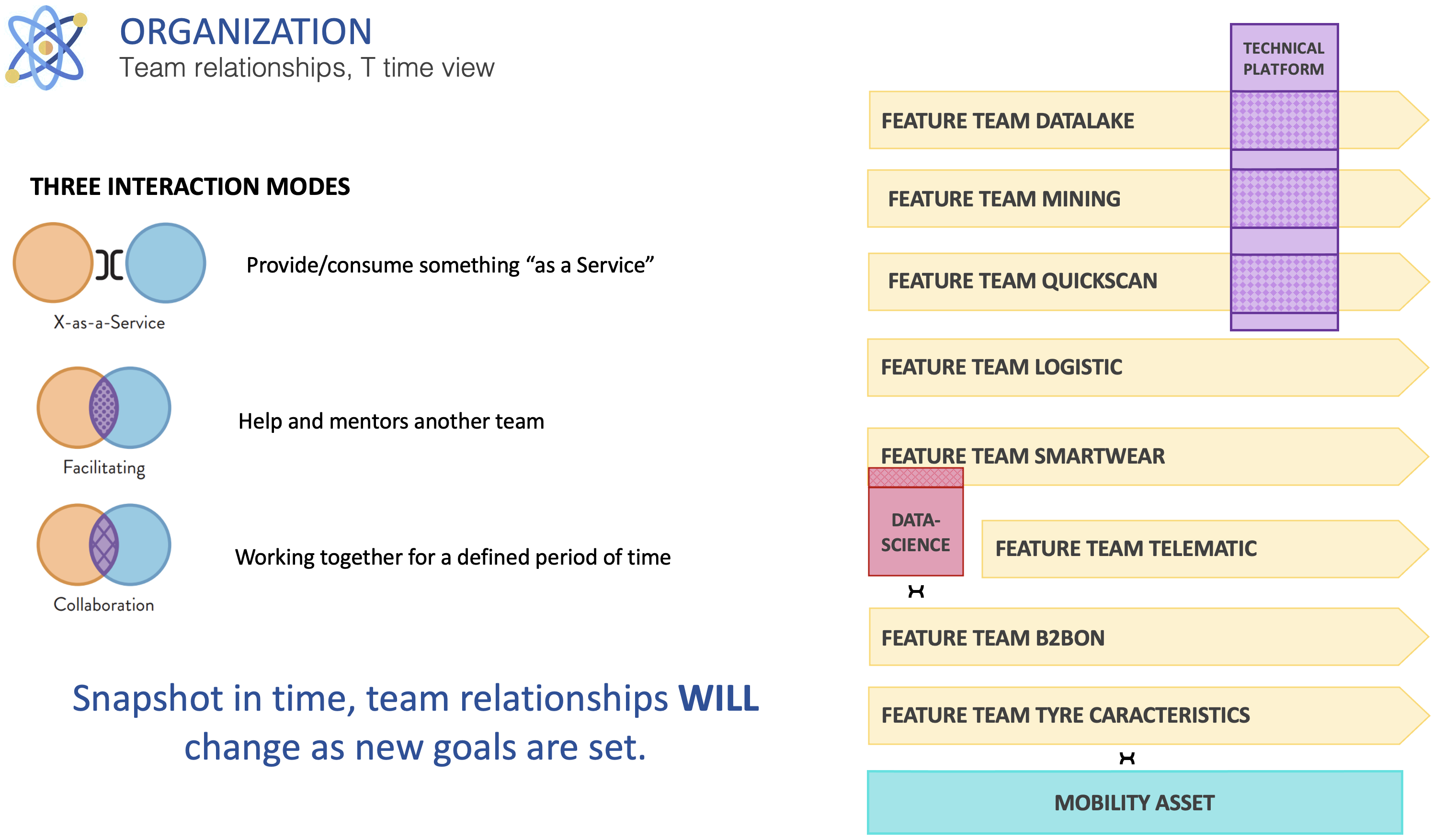

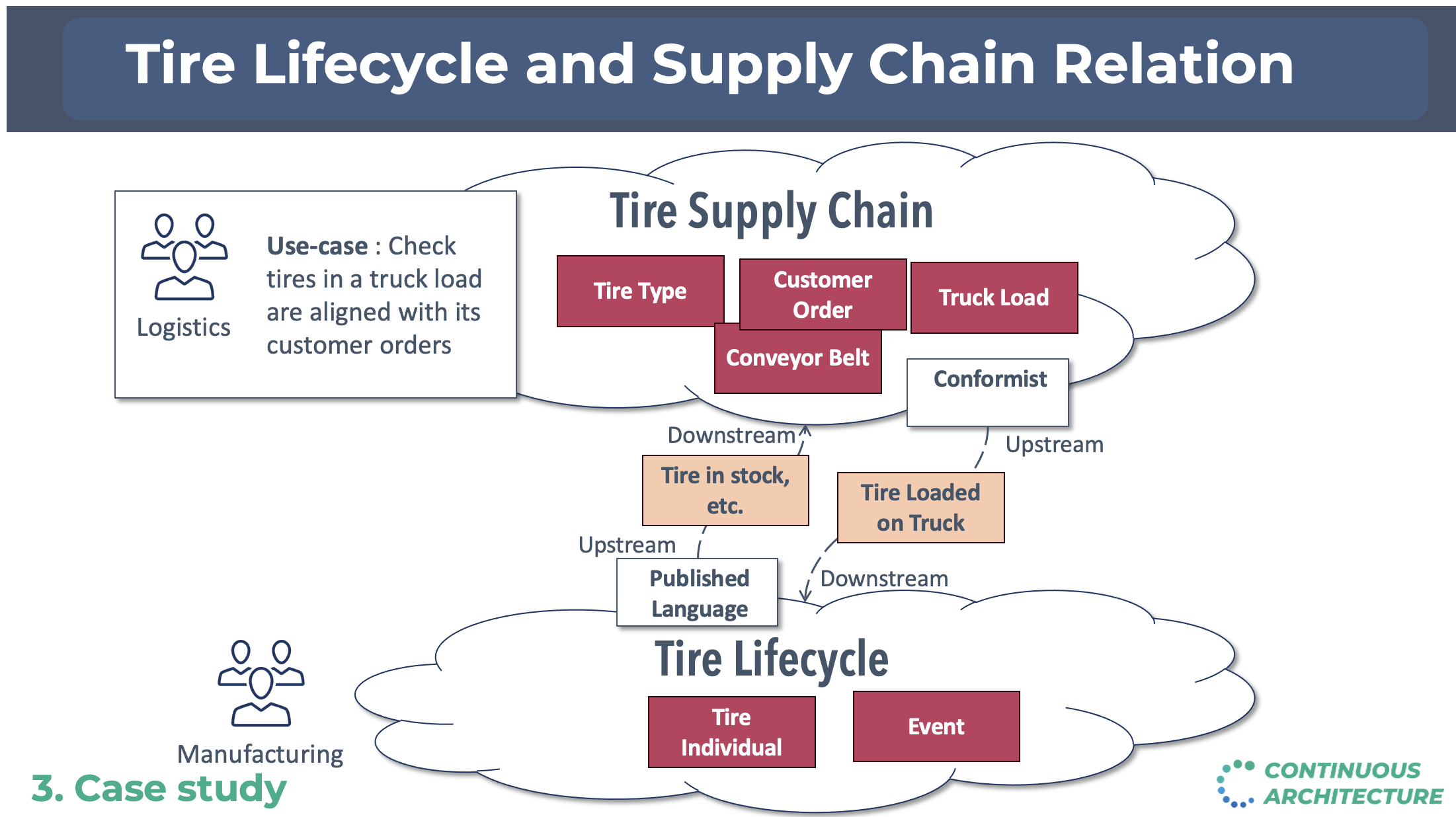

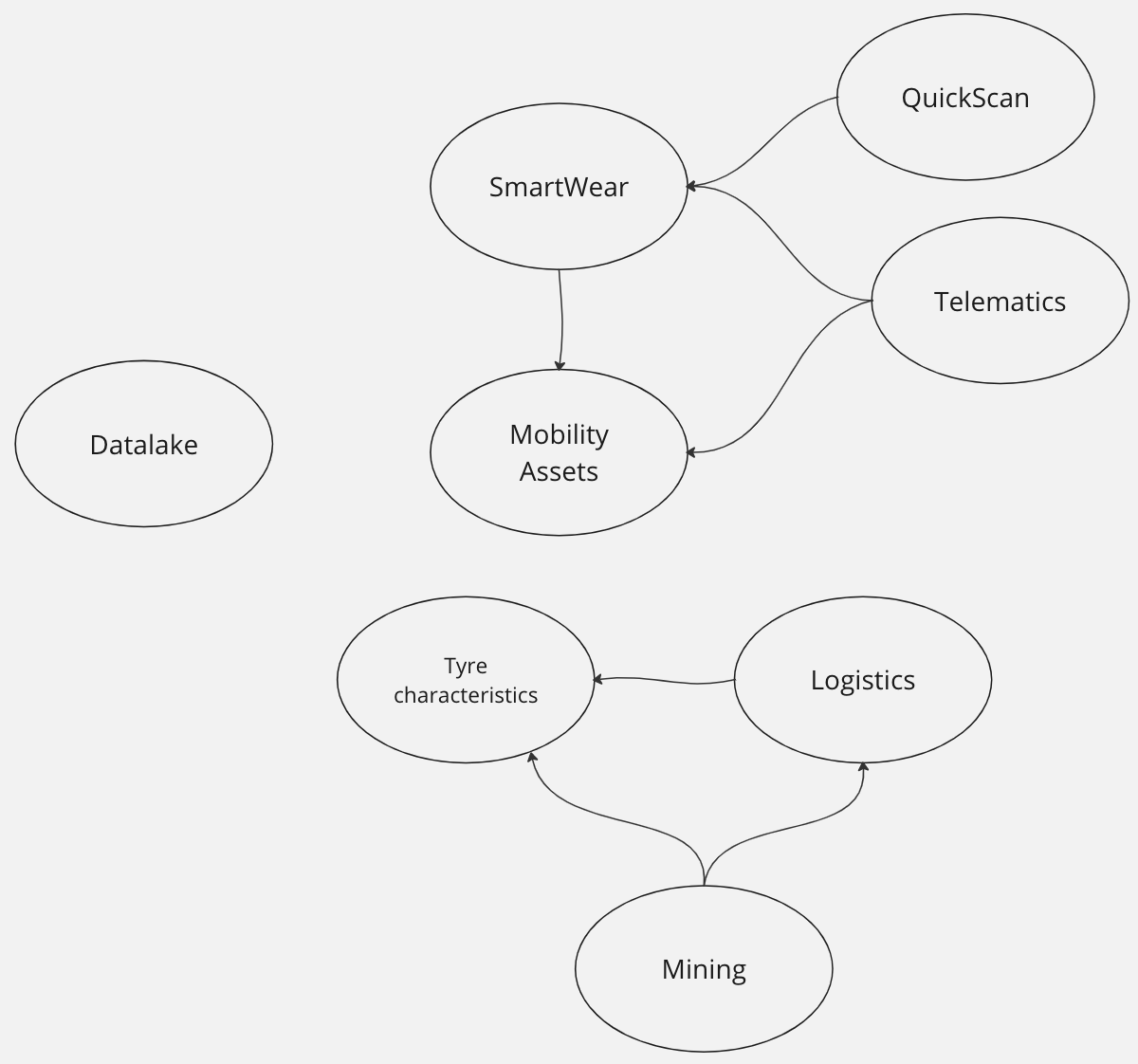

We looked into the Continuous Architecture toolbox to see what was available to help that team. Issues around autonomy (ie coupling) and the anti-pattern "Monolith with microservices" were a perfect fit for Domain Driven Design. It became clear, we had to split this monolith and re-think the architecture on business domains. We thought DDD alone was not enough. Changing the architecture without aligning the organization of the teams delivering is doomed to fail as stated in the Conway’s law. We had to deploy team topologies to make sure architecture and organization matched.

If you combine DDD and Team topologies all together, you can expect to get a modular architecture with an organization optimized for flow and aligned on the value stream. Cherry on the cake, in our case, it was also a way to introduce business agility with the capacity to add (or remove) teams depending on the topics you want to add (or stop). You put yourself in a position Amazon knows well: "The bigger we get, the easier it becomes to get bigger."

Let’s put it upfront: it took some time (15 months to be precised) to transform this monolith maintained by four different teams in collaboration mode. The transformation was progressive as we created teams one at a time. What are the results we got from this change?

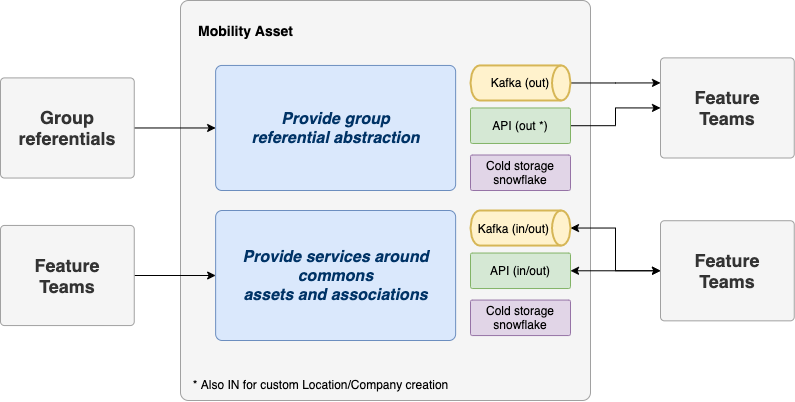

Team autonomy was drastically improved as we defined carefully our domains to reduce dependencies between them. The release train we mentioned above simply disappear giving more freedom for each team to deploy when they need. Dependencies can never be completely removed though. The importance of having clear interfaces' contracts (for APIs, Kafka topics etc) became more important than ever. One of the hard lessons learned is: if you don’t communicate well your contracts, regressions will happen and your consumers will be on your back before you know it. Communicate and manage compatibility well or get prepared.

Breaking down the monolith into smaller products make them easier to understand and master by teams. It can be seen as a simplification lever and a way to reduce the cognitive load. The number of customers for a given team got lower (1 maybe 2 for most of teams) bringing clarity and purpose. While before you had dozen of customers to talk to, now teams have 1 or 2 reducing the need to switch from one topic to the other. Cherry on the cake: the governance of the data platform is easier too. Each team is funded by its customer avoiding messy sessions where all stakeholders have to fight to get team availability.

The "You Build It, You Run It" approach is clearly a way to make support optimal by avoiding unnecessary transitions and making teams closer to their end users. The level of support can also be defined per team (ie at the offer level) instead of for the whole platform. It did introduce some complexity though as managing build & run activities in a team is not simple. Run activities are critical by nature and take over build activities. How do you preserve your velocity while always being interrupted with run tasks? How do you organize your team to provide a follow the sun support level? It could be controversial but empowering software engineers by putting them on duty make them very aware of the importance of what they they deliver. They will have to fix their own issues at night if the quality of their work is not at the expected level. They will learn fast.

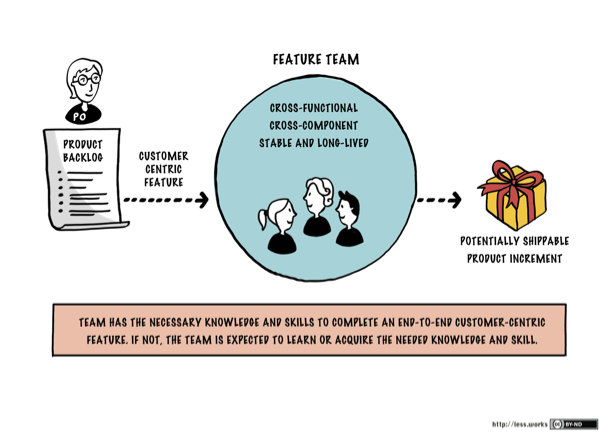

We took the opportunity of this change to introduce hybrid teams. We were used to have a business team and a tech team, the first being the customer of the second. A quite traditional way of delivering IT solutions in companies. Traditional but not effective as it introduces an unnecessary distance between business analysts and software engineer not being in the same team. This distance can be seen as blockers on the delivery flow. We decided to staff teams with the skills that were needed wherever they were coming from. A uniq team with one management system and proximity between team members.

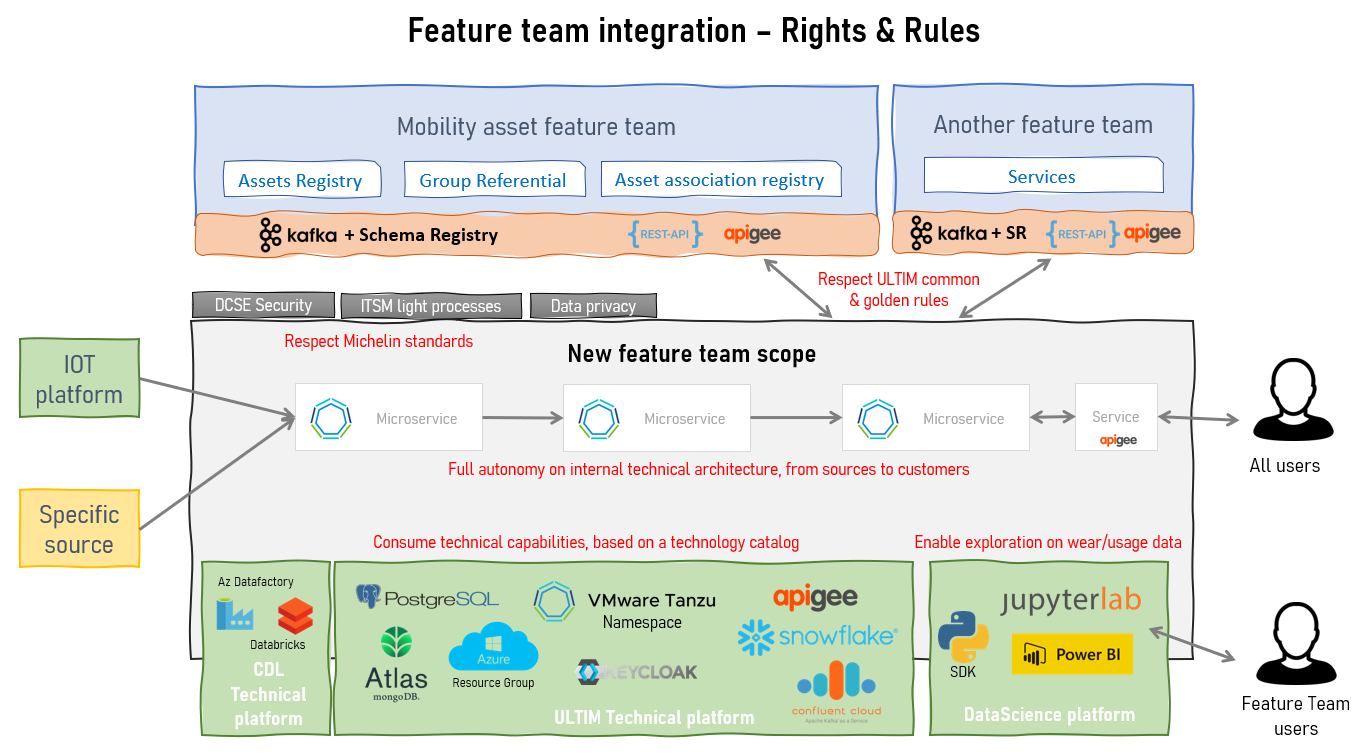

The number of transverse people needed to groom topics and ensure a global consistency was drastically reduced. Only a couple of architects remains transverse to make sure some guidelines are well applied (like communicating interface contracts or using this piece of technology). It also means there is no more someone transverse to blame and hide behind. Your team is in charge and empowered. Because transverse people like devops were no longer there, we had to staff them right into teams. We wanted to have focused and dedicated team members so we forbid sharing "people" between teams. It contributed to increase the autonomy of our teams but it had a cost: 10% increase for our teams' size. We had to have software engineers in teams able to perform all activities including devops ones.

Last but not least, we saw an increase in business agility. The Lean Startup methodology is advocating, among other things, to explore the market fit for your product (in our case a service offer). It means being able to create quickly Most Valuable Products to test hypothesis, get feedback and possibly adjust the course. Thanks to this change, we are now able to create teams to explore a topic on demand. As a matter of fact, we reverse the pressure as now business agility and speed are tight to our capacity to fund a new team. Agility also means we have sometime to shutdown a team when the market fit is not proven. The overall ecosystem is not disturbed that much.

Of course not. We re-architected our monolith to make it modular and adapted the organization to it. One thing is sure: we can take for granted. New exploration topics or services offers will emerge, some will disappear etc. The architecture and the organization will have to be adapted continuously but with the Continuous Architecture toolkit, we are well prepared.
